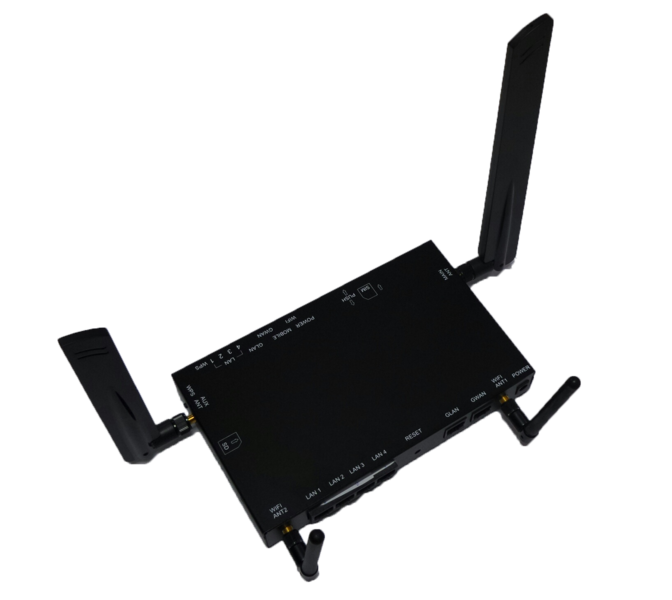

HSPA560-UA is a versatile and easy-to-use wireless router with following speed:
Up to 14.4Mbps from 3G
Up to 300Mbps from 802.11b/g/n 2T2R
Up to 1Gbps from LAN.
Up to 1Gbps from WAN.
KEY FEATURES
• 6- band 850/900/1700AWS/1800/1900/2100 MHz
• Wireless bearers
• HSUPA/HSDPA/UMTS (WCDMA/FDD) 800/850/1700AWS/1900/2100 MHz
HSPA: up to 14.4Mbps downlink, 5.7Mbps uplink.
UMTS: up to 384Kbps downlink, 384Kbps uplink.
• EDGE (E-GPRS) multislot class 10 and
up to 236.8Kbps downlink, 118Kbps uplink.
• GPRS multislot class 10
• SMS, text/data messaging
Up to 14.4Mbps from 3G
Up to 300Mbps from 802.11b/g/n 2T2R
Up to 1Gbps from LAN.
Up to 1Gbps from WAN.
KEY FEATURES
• 6- band 850/900/1700AWS/1800/1900/2100 MHz
• Wireless bearers
• HSUPA/HSDPA/UMTS (WCDMA/FDD) 800/850/1700AWS/1900/2100 MHz
HSPA: up to 14.4Mbps downlink, 5.7Mbps uplink.
UMTS: up to 384Kbps downlink, 384Kbps uplink.
• EDGE (E-GPRS) multislot class 10 and
up to 236.8Kbps downlink, 118Kbps uplink.
• GPRS multislot class 10
• SMS, text/data messaging
WiFi
802.11b/g/n 2.4GHz，2T2R，up to 300 Mbps.
INTERFACES
• 4 10/100Mbps LAN port，Auto MDI/MDIX
• 1 10/100/1000Mbps Gbps WAN port, Auto MDI/MDIX
• 1 10/100/1000Mbps Gbps LAN port Auto MDI/MDIX
• 1 SIM card interface (3V/1.8V)
• Power supply
• External 2 SMA antenna interface for WiFi 2T2R
External 2 SMA antenna interface for LTE MIMO.
• 1 TTL console port on board
Button:
WPS
System Reset
LED
Power, 2.4GHz wifi status, 4G status, Giga WAN, Giga LAN
4 10/100 LAN ports, Link/Act,WPS
Embedded system
• Linux:. Router can be shared by 250 user at the same time.
Supports OpenWRT，DD-WRT Ralink SDK Linux
Protocol: TCP, FTP, PPTP, HTTP,HTTPS, TFTP, DHCP, NAT, IPSec Pass through, ICMP, IGMP, RIPv2, RIP, OSPF, SNMP, RMON, QoS.
Optional: VPN client or gateway, IPSec client.
Others
• Size 18.8cm x 3cm x 11.4cm
• Weight 0.5 kg
• Operating temperatures
• Normal operating conditions -20...+55 °C
802.11b/g/n 2.4GHz，2T2R，up to 300 Mbps.
INTERFACES
• 4 10/100Mbps LAN port，Auto MDI/MDIX
• 1 10/100/1000Mbps Gbps WAN port, Auto MDI/MDIX
• 1 10/100/1000Mbps Gbps LAN port Auto MDI/MDIX
• 1 SIM card interface (3V/1.8V)
• Power supply
• External 2 SMA antenna interface for WiFi 2T2R
External 2 SMA antenna interface for LTE MIMO.
• 1 TTL console port on board
Button:
WPS
System Reset
LED
Power, 2.4GHz wifi status, 4G status, Giga WAN, Giga LAN
4 10/100 LAN ports, Link/Act,WPS
Embedded system
• Linux:. Router can be shared by 250 user at the same time.
Supports OpenWRT，DD-WRT Ralink SDK Linux
Protocol: TCP, FTP, PPTP, HTTP,HTTPS, TFTP, DHCP, NAT, IPSec Pass through, ICMP, IGMP, RIPv2, RIP, OSPF, SNMP, RMON, QoS.
Optional: VPN client or gateway, IPSec client.
Others
• Size 18.8cm x 3cm x 11.4cm
• Weight 0.5 kg
• Operating temperatures
• Normal operating conditions -20...+55 °C
